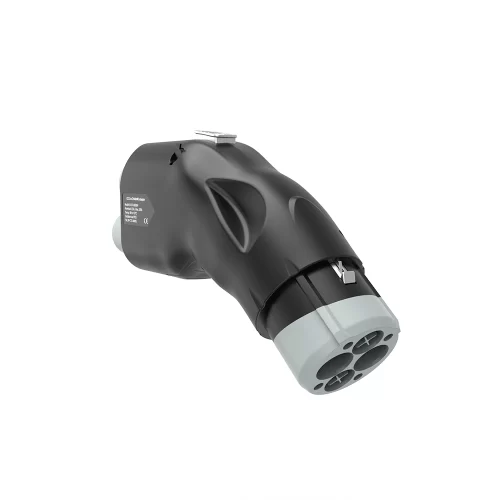

600V 200A CCS1 to CHAdeMO DC Adapter

This adapter is designed for Japan Standard (CHAdeMO) vehicle to charge on American Standard (CCS1) charging stations.

Cable Side: CCS 1 (SAE J1772-2009)
Car Side: CHAdeMO (CHAdeMO 1.0 Standard)
Rated Voltage & Current: 600V DC & 125A (Nominal) / 200A (Max) DC
Power: 50kW
Weight: 2.3kg / 5.2lb
Insulation Resistance: > 1,000 MΩ
Operating Temperature: -20℃ ~ +45℃ / -4°F ~ +113°F
Storage Temperature: -40℃ ~ +85℃ / -40°F ~ +185°F
IP Rating: IP54
Flame-Retardant Rating: UL94 V-0
Insertion Force: 45N < F < 80N

Firmware update will be available via USB-C port
Power supply is available via 12V power inlet port
