Model 3/Y 8.9″ Rectangular Instrument Cluster with CarPlay

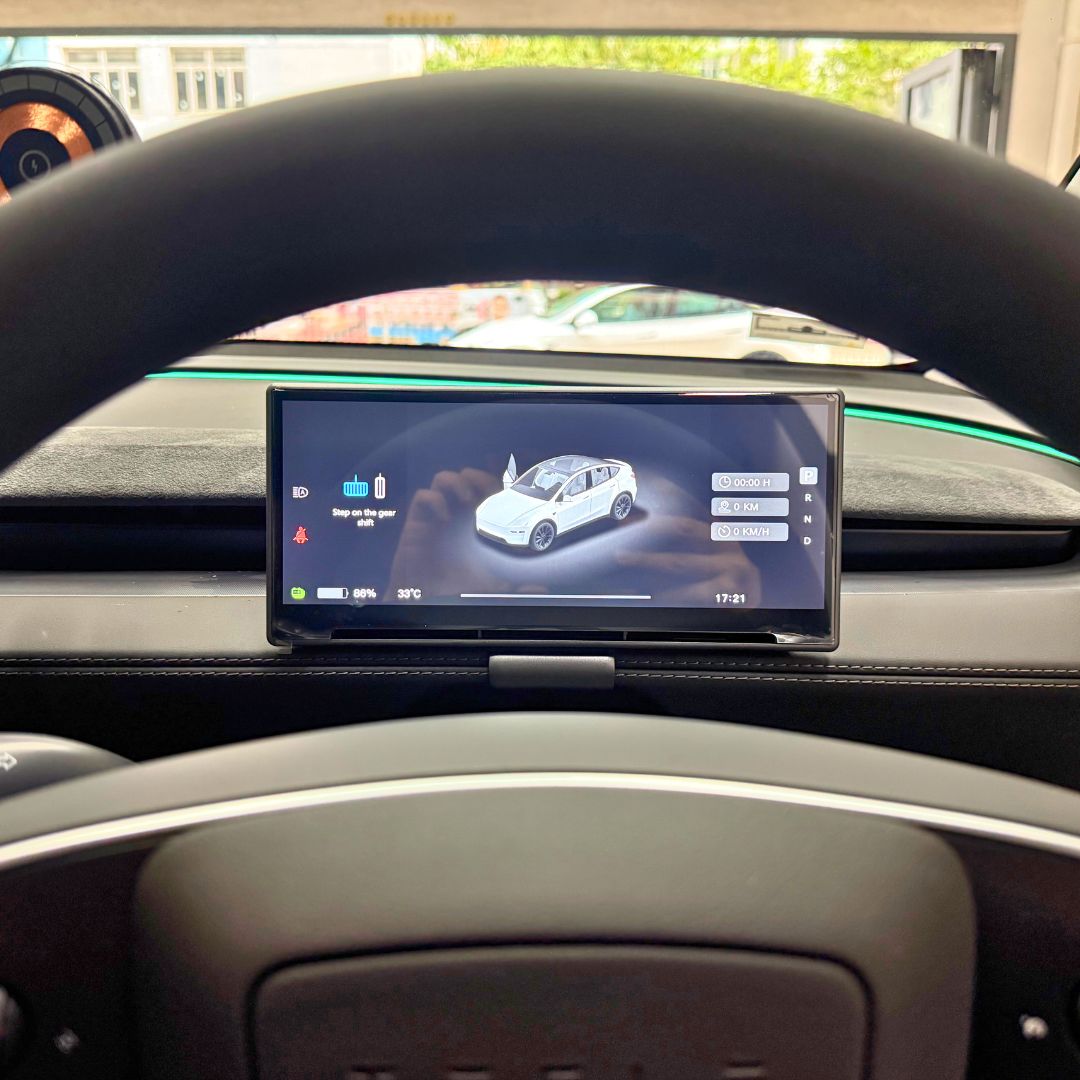

The 8.9″ Rectangular Instrument Cluster is a dashboard that shows a lot of useful data in front of the steering wheel. It support CarPlay features. There is an optional 155° 1080P front view camera.

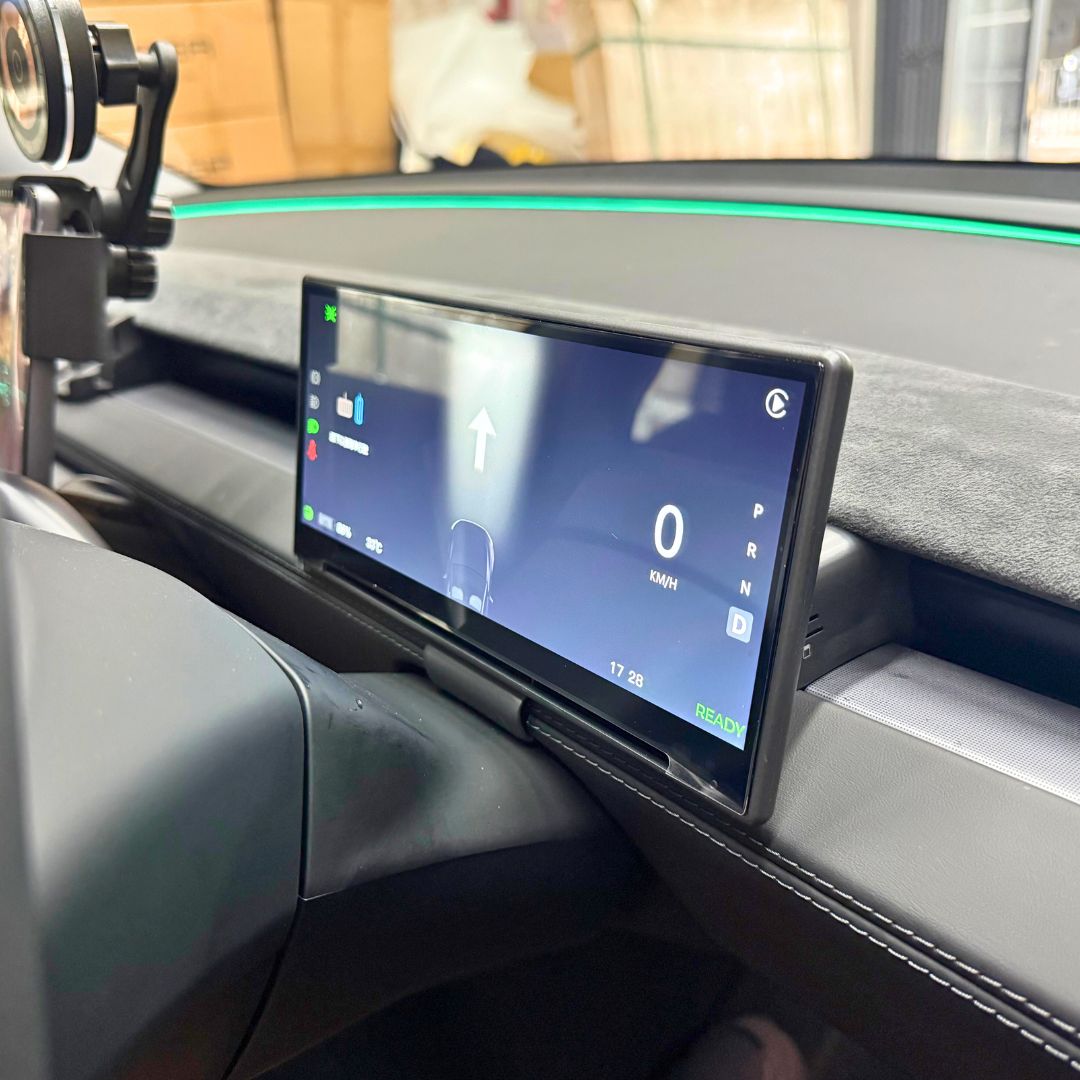

Different from the 6.8″ version, it is set above the dashboard and allows airflow below the display.

It comes with 2 display styles and you can switch around in the setting page. To get into the settings page, hold the right scroll wheel to the left on your steering wheel for 3 seconds.

The IC shows the following information:

• Speedometer
• Battery Level
• Gear
• Head Light Status (High Beam / Low Beam / Position Light)
• Turn Signal Light
• Charging Information
• Cruise Control Distance
• Frunk and Trunk Status (Open/Closed)
• Door Status (Open/Closed)
• Hand Brake / Auto Hold
• Seat Belt Warning
• Time
• Temperature
• TACC Distance
• Tire Pressure
• Blind Spot Warning

Specification

• Screen Size: 8.9″
• Resolution: 1920 * 720
• Language: Multilingual

Installation time: 15 – 30 minutes

Installation Manual: Coming Soon
Installation Video: Coming Soon

Product Compatibility

Variant A (Intel Atom MCU):
Made in Fremont Model 3 built between 2020/10/05 and 2022/01/16
Made in Fremont Model Y built on or before 2022/01/05
Made in Shanghai Model 3 built between 2020/12/28 and 2021/11/11
Made in Shanghai Model Y built on or before 2021/11/14

Variant B (AMD Ryzen MCU):
Made in Austin Model Y built after 2022/03/28
Made in Berlin Model Y built after 2022/02
Made in Fremont Model 3 built between 2022/01/17 and 2023/10
Made in Fremont Model Y built after 2022/01/06
Made in Shanghai Model 3 built after 2021/11/12 and 2023/12
Made in Shanghai Model Y built after 2021/11/15

Variant C (Project Highland / Juniper):
Made in Austin Model Y built after 2025/01
Made in Berlin Model Y built after 2025/01
Made in Fremont Model 3 built after 2023/09
Made in Fremont Model Y built after 2025/01
Made in Shanghai Model 3 built after 2024/01
Made in Shanghai Model Y built after 2025/01

* Android Auto is not supported
